Technical specifications

CNC Milling Machine OPTImill F 80

Control system: Siemens Sinumerik 808D ADVANCED

Tools and Milling Cutters:

• Max. diameter of face mill: 50 mm
• Max. diameter of end mill: 25 mm

Machining Accuracy:

• Repeatability: ± 0.008 mm
• Positioning accuracy: ± 0.01 mm

Tool Changer:

• Number of positions: 10
• Max. tool diameter: 52 mm
• Max. tool length: 200 mm

Working Area:

• Spindle-to-table distance: 75 – 475 mm
• Table dimensions: 400 × 200 mm
• T-slots: 16 mm
• Max. table load: 150 kg

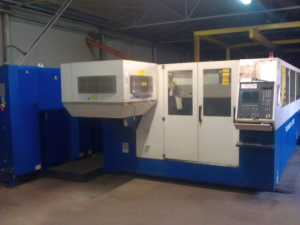

TRUMPF TruLaser 3030 fiber

Working Parameters:

• Working range – X axis: 3,000 mm
• Working range – Y axis: 1,500 mm

Laser & Cutting Performance:

• Laser type: TruDisk 3001

Maximum Sheet Thickness:

• Mild steel: 16 mm
• Stainless steel: 10 mm
• Aluminum: 10 mm
• Copper: 6 mm
• Brass: 6 mm

TRUMPF TruBend 7036

Description:

An ergonomic and highly productive press brake. The TruBend Series 7000 represents the perfect interaction between human and machine. The direct-drive ram delivers high torque even at low speeds, ensuring strong bending force at high working speed. Special emphasis is placed on ergonomics and ease of operation – the machine is simple, fast to use, and guarantees consistently high precision.

Technical Data:

• Pressing force: 360 kN
• Bending length: 1,020 mm

TRUMPF TruBend 1150

Description:

An ergonomic and highly productive press brake. The TruBend Series 1000 represents the perfect interaction between human and machine. The direct-drive ram delivers high torque even at low speeds, ensuring strong bending force at high working speed. Special emphasis is placed on ergonomics and ease of operation – the machine is simple, fast to use, and guarantees consistently high precision.

Technical Data:

• Pressing force: 1500 kN
• Bending length: 3100 mm
